Punching and bending are two common processes used in metal fabrication. When combined, they can turn a flat sheet of metal into a finished part with holes, angles, and specific shapes.
Many metal components used in machinery, construction, furniture, electrical equipment, and other industries require both punching and bending. Using these processes together can improve production efficiency, dimensional consistency, and overall part quality.
Punching is a process used to create holes or other openings in a metal sheet. A punch and die are used to cut the material into the required shape.
Depending on the design, punching can create round holes, square holes, slots, and other customized openings. The process is fast and suitable for producing large quantities of metal parts.
Punching is often used for mounting holes, connection points, ventilation openings, and decorative patterns.
Bending changes the shape of a flat metal sheet without cutting it completely. A bending machine applies controlled force to create an angle or curve in the material.
Common bending operations include creating 90-degree angles, U-shapes, L-shapes, channels, and other custom profiles.
Bending allows a flat metal sheet to become a stronger and more functional three-dimensional component.
In many applications, punching and bending are not separate processes. They are planned together based on the final design of the part.

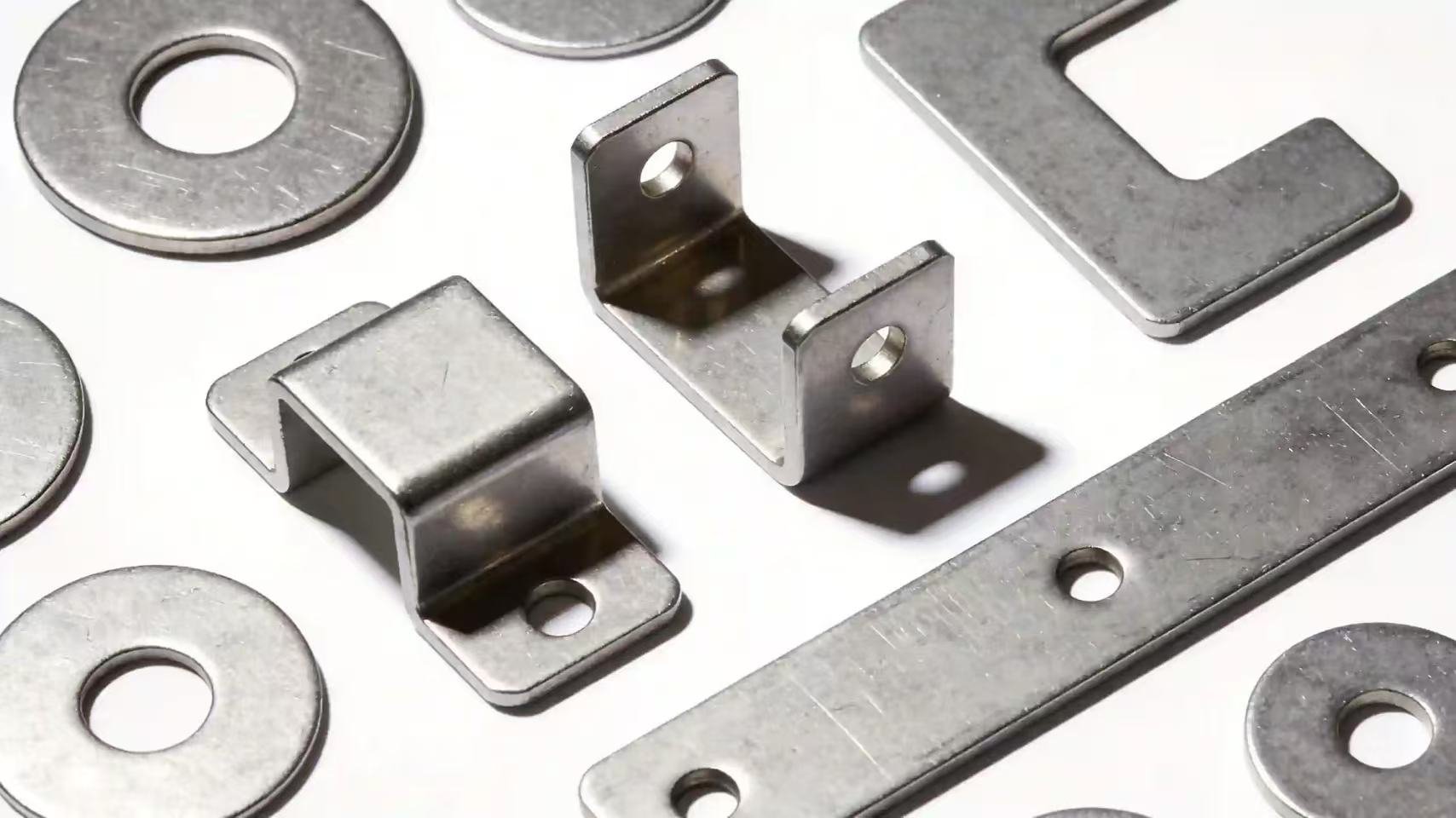

For example, a metal bracket may require several mounting holes and a 90-degree bend. The holes can be punched into the flat sheet first, followed by bending the sheet into the required shape.
This sequence makes it easier to control the position of the holes and the final dimensions of the part.
In some cases, bending may be performed before certain punching operations. The correct sequence depends on the material, part design, tolerances, tooling, and production requirements.
The order of punching and bending can directly affect the quality of the finished part.
If a hole is too close to a bending line, the bending operation may cause deformation around the hole. For this reason, engineers need to consider hole positions, bend locations, material thickness, and bend allowances during the design stage.
A well-planned production sequence can help reduce deformation, improve dimensional accuracy, and minimize unnecessary processing.
Using punching and bending together provides several advantages.
Better production efficiency:
Multiple operations can be organized into a streamlined production process, reducing unnecessary handling between operations.
Consistent part quality:
Proper tooling and process control help maintain consistent hole positions, bend angles, and overall dimensions.
Flexible designs:
Punching and bending can produce a wide range of shapes and configurations for different applications.
Reduced production costs:
Efficient processing can reduce labor time, material waste, and unnecessary production steps, especially for larger production runs.
Suitable for custom parts:
Both processes can be adjusted according to drawings, specifications, and customer requirements.

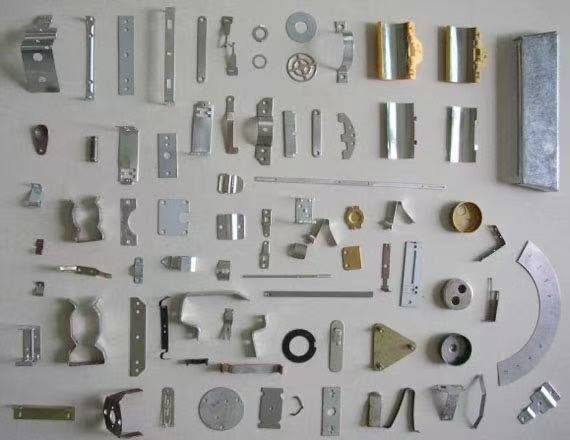

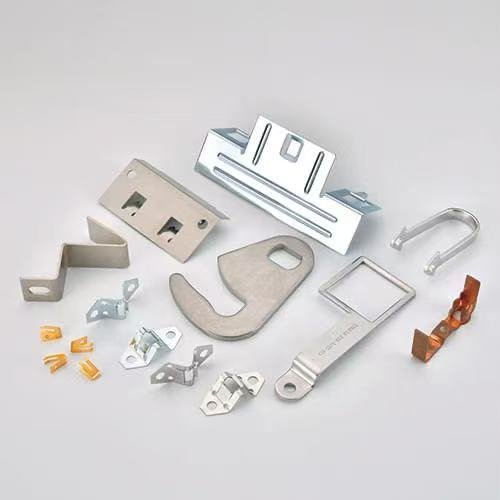

Punching and bending are widely used to manufacture different types of metal components.
Typical applications include:

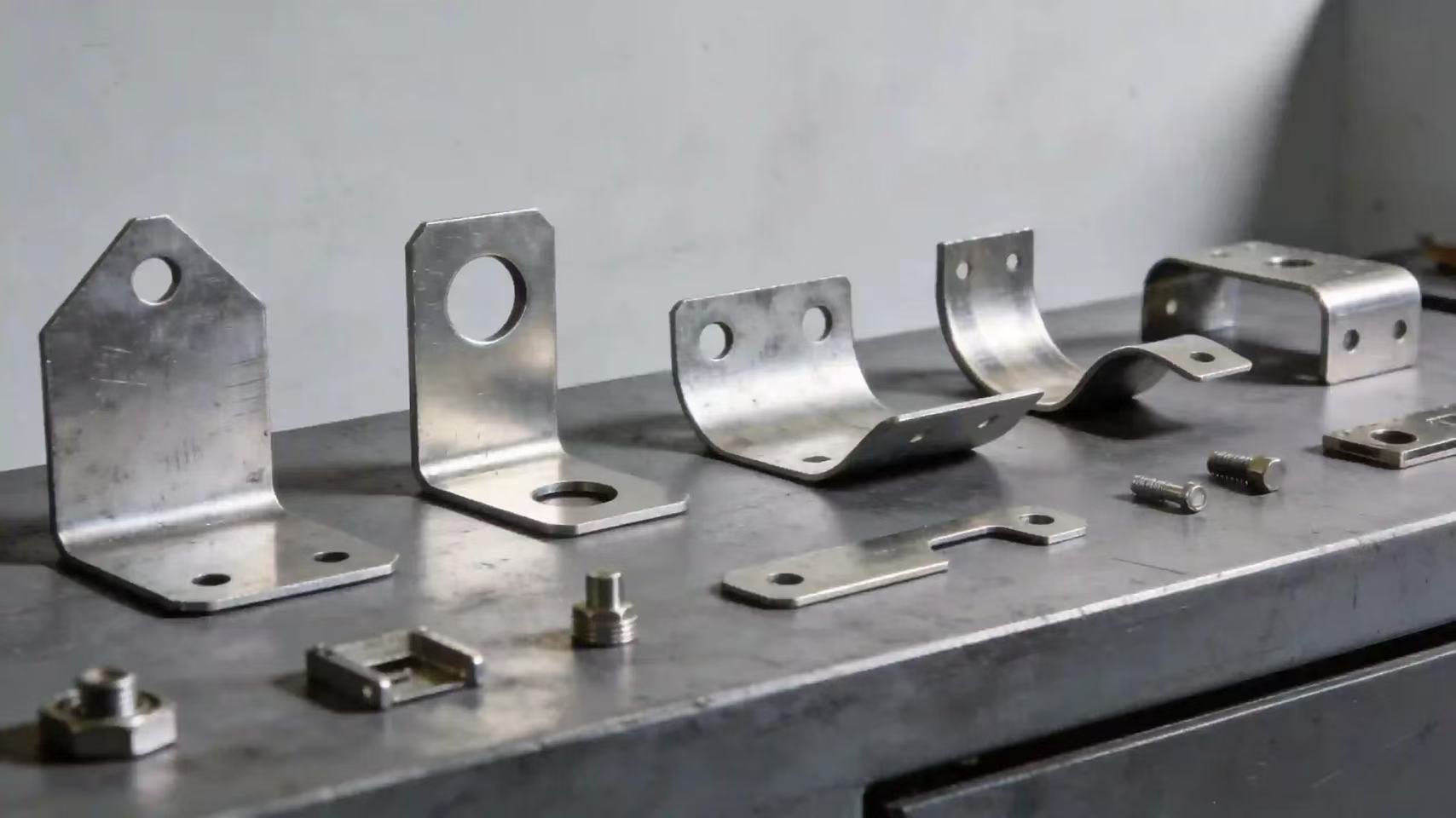

Metal brackets
Mounting plates
Support components
Electrical enclosures
Furniture components
Machine parts
Automotive components
Construction hardware
Decorative metal parts
Custom stamped components
For example, a mounting bracket may need punched holes for screws and a bent section for installation. Combining the two processes makes it possible to produce the complete component from a single piece of sheet metal.
The material used for a part also affects the punching and bending process.
Common materials include carbon steel, stainless steel, aluminum, and galvanized steel. Different materials have different levels of hardness, ductility, and springback.
Material thickness is also important. Thicker materials may require greater punching and bending force, while thinner materials require careful control to avoid deformation.
Choosing the right material and processing method helps ensure that the finished part meets the required specifications.
Good design can make punching and bending more efficient.
When designing a part, manufacturers usually consider:
Material thickness
Hole size and position
Distance between holes and bend lines
Bend radius
Bend angle
Material direction
Required tolerances
Tooling limitations
These factors should be considered before production begins. A suitable design can reduce manufacturing difficulties and help control production costs.
Every metal component has different requirements. Some parts may only need a few punched holes and one bend, while others may require multiple punching and bending operations.
For custom projects, manufacturers can work from customer drawings, samples, or specifications to determine the appropriate production process.
Combining punching and bending allows manufacturers to produce practical, accurate, and cost-effective metal components for a wide range of applications.
Punching and bending are simple processes individually, but together they provide a powerful solution for metal fabrication.
Punching creates the required holes and openings, while bending gives the metal its final shape. When the two processes are properly planned, manufacturers can achieve better efficiency, consistent quality, and reliable finished parts.
For custom metal components, understanding how punching and bending work together is an important step toward creating a practical and manufacturable design.
