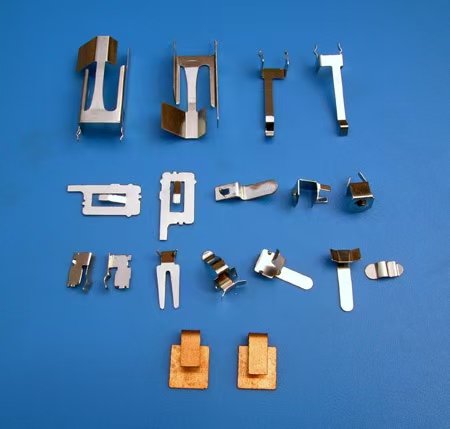

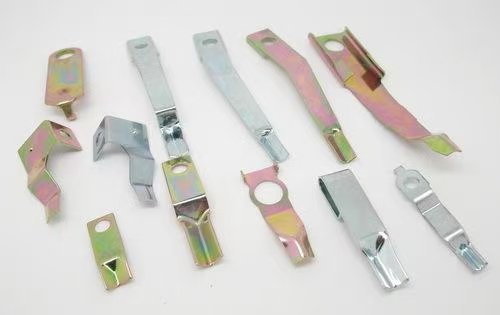

When you look at a metal stamping part, accuracy seems simple.
A hole should be in the right place.
A bend should have the right angle.
The overall dimensions should match the drawing.
But what actually determines whether a stamped part is accurate?
Many people would say, “The stamping die.”
They are not wrong.
But the die is only one piece of the puzzle.
In real production, stamping accuracy is influenced by the die, material, press, process, tool condition, and inspection system. More importantly, these factors have to work together consistently.
Because making one accurate part is one thing.
Making 100,000 of them accurately is another.
The stamping die is one of the most important factors affecting part accuracy.
The dimensions of the die, the clearance between the punch and die, the positioning structure, and the quality of the die components all influence the final part.
For example, if the clearance is not appropriate, the result may include:
Excessive burrs
Poor cut edges
Dimensional variation
Deformation
Shorter tool life
A high-quality die provides a stable foundation for production.
But even a precisely manufactured die cannot guarantee perfect parts forever.
Why?
Because the other factors are moving too.
Imagine producing the same part from two sheets of steel with the same nominal thickness.
They may look identical.
But they may not behave exactly the same during stamping.
Material strength, hardness, elongation, thickness tolerance, and other properties can affect how the metal responds to forming.
This becomes especially important for bending and forming operations.
A stronger material may have different springback behavior. A small change in material thickness can also affect dimensions and forming results.
That's why material specifications matter.
For high-volume production, material consistency is just as important as material selection.
The die gets a lot of attention, but the stamping press also plays an important role.
A press needs to provide stable and repeatable movement and sufficient rigidity during production.
Factors such as:
Press accuracy
Machine rigidity
Slide movement
Stamping force
Production speed
Feeding accuracy
can all influence the final result.
A good die running on an unstable machine may not produce the same results as that die running on a well-maintained, properly matched press.
In other words:
A good tool still needs a good machine.
This is one of the most interesting factors in stamping accuracy.
When metal is bent, it does not always stay exactly where the die puts it.
After the forming force is released, the material may move slightly toward its original shape.
This is called springback.
For simple parts, a small change may not matter.
For precision parts, it can matter a lot.
A drawing may specify a 90-degree bend, but the manufacturer needs to understand how the material will behave after leaving the die.
That may require:
Over-bending
Tool compensation
Different forming methods
Process adjustments
Careful material control
So sometimes, getting a precise 90-degree angle means intentionally forming the material beyond 90 degrees first.
Metal stamping can be a little counterintuitive.
A new stamping die may produce excellent parts.
But a stamping die is not immortal.
During production, the punch and die repeatedly contact metal—sometimes hundreds or thousands of times per hour.
Over time, working edges and forming surfaces can wear.
As the tool wears, manufacturers may see changes such as:
Increasing burrs
Hole-size variation
Dimensional changes
Poorer edge quality
Changes in forming results
This is especially important for large production runs.
A part that is accurate at the beginning of production should also remain accurate later.
That's why tool maintenance and regular inspection are important parts of precision stamping.
Even with the correct material, die, and press, the process itself matters.
Different stamping operations may require different settings and sequences.
For example, manufacturers may need to control:
Feeding position
Stamping speed
Forming sequence
Press force
Lubrication
Material positioning
A small process change can sometimes affect the final dimensions.
This is why experienced manufacturers do not simply ask:
“Can we make this part?”
They also ask:
“How can we make this part consistently?”
That second question is much more important for mass production.
A drawing may specify a tolerance such as ±0.05 mm.
But not every feature on a stamped part needs the same level of precision.
A hole used for assembly may have a much tighter requirement than an exterior dimension that has no effect on function.
This is why manufacturers need to understand which dimensions are truly critical.
Overly tight tolerances can increase:
Tooling requirements
Production difficulty
Inspection time
Scrap rates
Manufacturing costs
A practical tolerance is not about making every dimension extremely precise.
It is about making the important dimensions precise enough for the application.
Inspection does not make an inaccurate part accurate.
What it does is help manufacturers detect when the process is starting to move away from the target.
Depending on the part, inspection may include:
Overall dimensions
Hole position
Hole diameter
Bend angle
Material thickness
Flatness
Burrs
Surface condition
For high-volume stamping, inspection is particularly important because even a small process change can affect a large number of parts.
If a problem is discovered after 500,000 pieces have been produced, the cost can be enormous.
If it is discovered after 500 pieces, the problem is much easier to control.
Here's the part that buyers should pay the most attention to.
Suppose Supplier A produces one excellent sample.
Supplier B produces the same excellent sample.
At first glance, both suppliers look equally capable.
But what happens after:
10,000 parts?
100,000 parts?
500,000 parts?
This is where the difference becomes visible.
A reliable stamping process should not depend on getting lucky with one good sample.
It should be designed to repeatedly produce parts within the required specifications.
That's what production stability really means.
There is no single answer.
A more realistic formula looks like this:
Die + Material + Press + Process + Tool Condition + Inspection = Stamping Accuracy
But even this formula misses one important point.
These factors must work together.
A precise die cannot completely compensate for unstable material.
Good material cannot fix a worn-out die.
A good machine cannot solve a poorly designed forming process.
And inspection cannot prevent a problem if nobody uses the inspection results to adjust the process.
For buyers, this is perhaps the most important takeaway.
When evaluating a metal stamping supplier, don't ask only:
“Can you make this part?”
Also ask:
“Can you make the same part accurately throughout mass production?”
That is a much harder question.
Because stamping accuracy is not simply about hitting the right dimension once.
It is about repeating that result—again and again, batch after batch, production run after production run.
The real measure of a precision stamping supplier isn't how accurately they can make one part. It's how consistently they can make thousands of them.
