When you need only a few hundred metal parts, custom metal stamping may not always be the first manufacturing process that comes to mind.
But when the required quantity reaches thousands, tens of thousands, or even millions of parts, metal stamping can become a highly cost-effective manufacturing solution.
The reason is simple: the more parts you produce, the more efficiently the initial tooling and production costs can be spread across each part.
However, high-volume stamping is not simply about producing more parts. Tool design, material selection, automation, production speed, and quality control all affect the final cost.
So, why can high-volume metal stamping be more cost-effective?
One of the biggest costs in custom metal stamping is the tooling.
A stamping die must be designed, manufactured, tested, and adjusted before mass production begins. For a small order, this initial investment can represent a significant portion of the total cost.
For example, imagine a stamping die costs $5,000.
If you produce only 1,000 parts, the tooling cost alone equals:
$5.00 per part
But if you produce 100,000 parts:
$5,000 ÷ 100,000 = $0.05 per part
The die itself has not become cheaper. Instead, the tooling cost is distributed across a much larger production volume.
This is one of the main reasons high-volume stamping can reduce the effective cost per part.
Metal stamping is a fast manufacturing process.
Once the stamping die, press, and production parameters have been properly set up, a press can produce a large number of parts in a relatively short period.
For high-volume orders, automated feeding systems and progressive dies can further reduce manual operations.
Instead of an operator manually handling every individual piece, material can move automatically through the stamping process.
This means:
Less manual handling
Fewer repetitive operations
Higher production efficiency
Lower labor cost per part
More consistent production
For customers ordering tens of thousands of parts, these savings can make a significant difference.
A simple stamping part may require only one operation.
A more complicated part may require punching, bending, forming, embossing, or other operations.

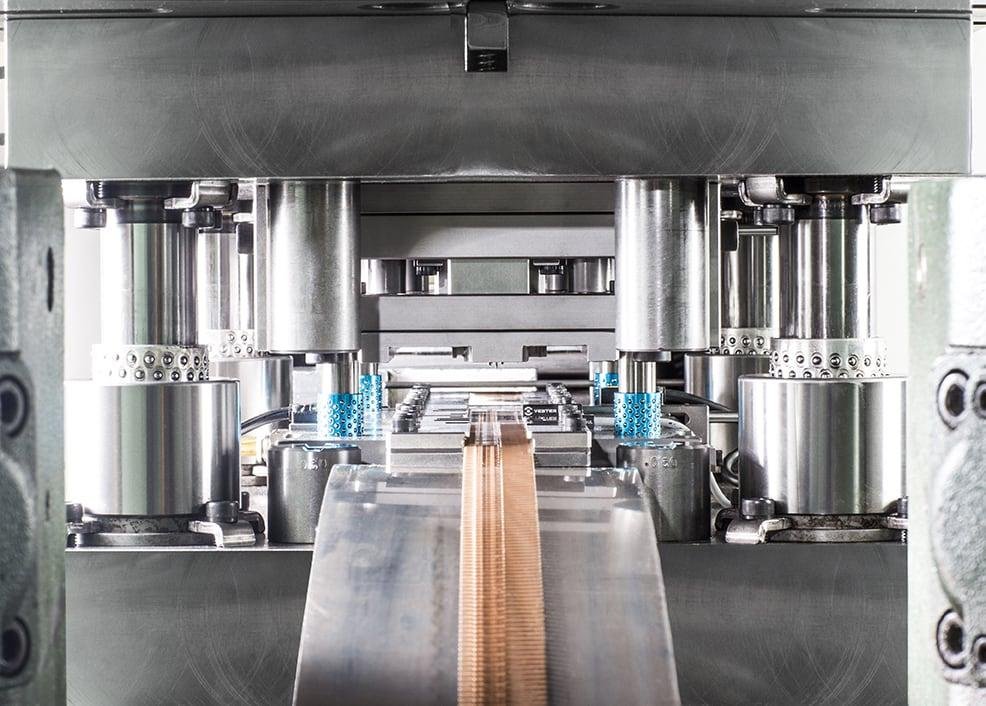

With a progressive die, several operations can be performed during the same production cycle.
The metal strip moves through different stations inside the die, with each station performing a specific operation.
For high-volume production, this can eliminate unnecessary handling between separate machines.
The result is a continuous production process that can significantly improve efficiency.
6
Material is another important part of the total cost of a stamped component.
Steel, stainless steel, aluminum, copper, and other metals can account for a large percentage of the final part cost.
A well-designed stamping process can improve material utilization by optimizing:
Part layout
Strip width
Feed direction
Nesting
Scrap rate
Material thickness
Even a small improvement in material utilization can become significant when producing hundreds of thousands of parts.
For example, saving only a few grams of material per part may not seem important for an order of 1,000 pieces.
But at 500,000 pieces, the total material savings can become substantial.
Automation usually requires an initial investment.
For a small production run, that investment may not be easy to justify.
For high-volume production, however, the situation changes.

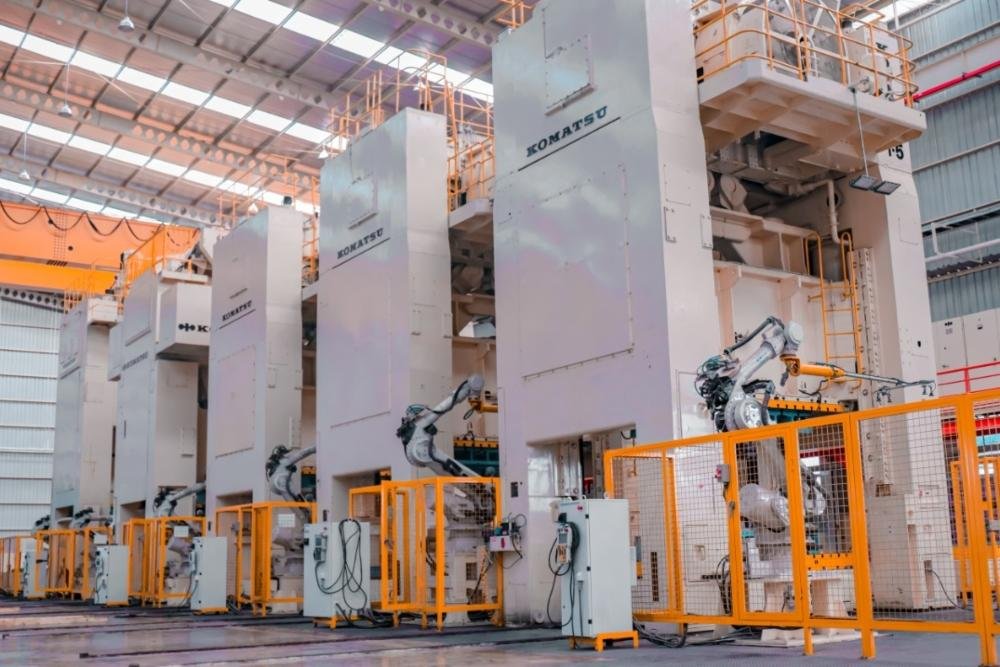

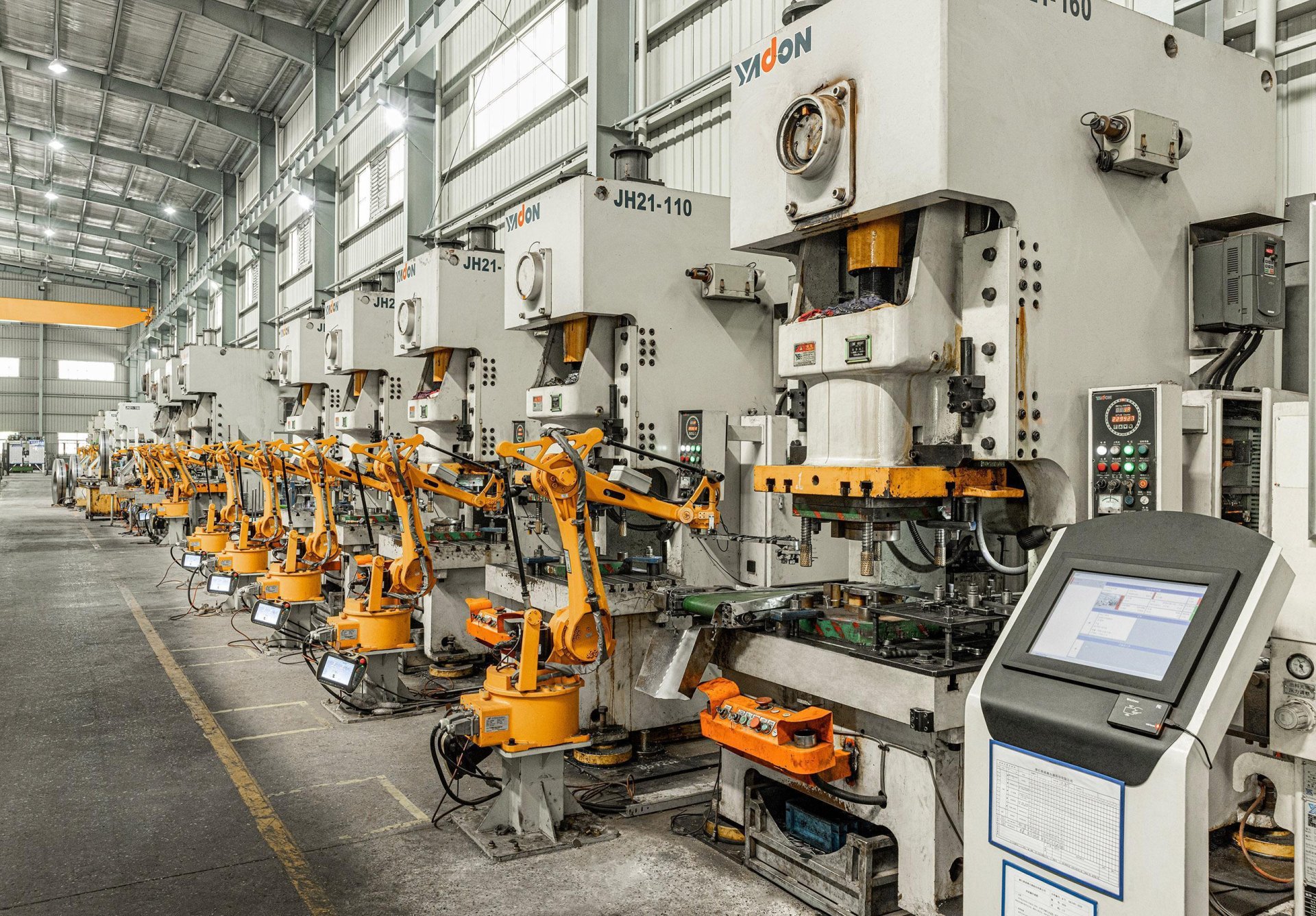

Automatic feeding, material handling, part collection, inspection, and other automated processes can reduce the amount of manual work required for each part.
Once the production line is running efficiently, automation can help maintain a consistent production speed for long periods.
This is particularly useful when customers need the same part repeatedly over months or years.
Every manufacturing process has certain setup activities.
For metal stamping, these may include:
Die installation
Machine setup
Material preparation
Trial production
Parameter adjustment
First-piece inspection
These activities require time regardless of whether the customer orders 1,000 parts or 100,000 parts.
With a larger order, these fixed setup costs are distributed across more finished parts.
This is another reason why the unit price can decrease as production volume increases.
Cost is not only about how much a part costs to manufacture.
Quality problems can also create hidden costs.
A high-volume stamping process can be highly repeatable when the die, material, machine, and production parameters are properly controlled.
Once the process is stable, thousands of parts can be produced using the same tooling and standardized production conditions.
This can help reduce variations in:
Dimensions
Hole positions
Bending angles
Part shape
Surface condition
Consistent production is particularly important for components that must fit into an assembly.
A part that is inexpensive but cannot be assembled correctly may ultimately cost much more.
When the expected production volume is high, manufacturers can justify investing more time and resources into tooling optimization.
For example, a high-volume project may make it worthwhile to consider:
Progressive dies
Automatic feeding
Multiple-station tooling
Faster production cycles
Automated inspection
Improved material utilization
The goal is not simply to make the die cheaper.
The goal is to design a production system that can manufacture the required quantity efficiently and consistently.
There is an important point that buyers should understand:
A larger quantity does not automatically guarantee a lower total manufacturing cost.
The design of the part still matters.
A poorly designed part may require complicated tooling, excessive material, multiple secondary operations, or frequent manual handling.
In some cases, a small design modification can make a significant difference to production efficiency.
This is why it is useful to involve the stamping manufacturer during the design and quotation stage.
A manufacturer may identify opportunities to simplify the part, improve material utilization, reduce unnecessary operations, or make the tooling more suitable for mass production.
There is no universal quantity that defines “high volume.”
The right production method depends on the part design, material, dimensions, tolerances, tooling requirements, and expected order frequency.
However, high-volume metal stamping is particularly suitable when:
The part design is relatively stable
Large quantities are required
The same component will be produced repeatedly
Consistent dimensions are important
Fast production is required
Tooling costs can be distributed across many parts
For recurring orders, the economics can become even more attractive because the tooling has already been developed and production parameters have already been established.
Before placing a large stamping order, don't focus only on the quoted unit price.
Ask your manufacturer about the complete production process.
Important questions include:
What material will be used?
What is the expected material utilization?
What type of stamping die will be required?
How many operations are needed?
Can the process be automated?
What tolerances can be consistently maintained?
What secondary operations are required?
How will quality be inspected during mass production?
Looking at these factors together can give you a much clearer picture of the real manufacturing cost.
High-volume metal stamping can be cost-effective because several factors work together: tooling costs are distributed across more parts, production speed increases, labor requirements can decrease, material utilization can improve, and automated processes can make long production runs more efficient.
But the lowest unit price does not always come from simply ordering the largest quantity.
The real savings come from designing an efficient manufacturing process from the beginning.
For custom metal stamping projects, working with a manufacturer that can handle tooling development, stamping production, process optimization, and quality control under one production system can make it easier to control both cost and consistency.
When the volume is right and the process is properly designed, a stamping die is not just a tooling expense—it becomes an investment that can help make every additional part more economical.
