Better Design. Lower Cost. Faster Production. Better Quality.
When you need custom metal stamped parts, having a good drawing is only the beginning. A part may look perfect on a CAD screen, but that does not always mean it is easy or cost-effective to manufacture.
This is where DFM (Design for Manufacturability) becomes important.
DFM helps engineers and manufacturers review a part design before production starts. By considering material, thickness, tolerances, bends, holes, shapes, and tooling requirements early in the process, manufacturers can identify potential problems before they become expensive production issues.
For companies purchasing custom metal stamping parts, good DFM can mean lower costs, shorter lead times, fewer defects, and more consistent quality.
DFM stands for Design for Manufacturability.
In simple terms, DFM means designing a part in a way that makes it easier, faster, and more economical to manufacture.
In metal stamping, DFM focuses on questions such as:
Is the material suitable for the stamping process?
Is the material thickness appropriate?
Are the holes large enough?
Are the distances between holes and edges practical?
Are the bend radii suitable?
Are the tolerances realistic?
Can the part be produced with a practical stamping die?
Can material waste be reduced?
Can secondary operations be minimized?
A good DFM review connects product design with real manufacturing conditions.
Good design is not only about how a part looks. It is also about how efficiently the part can be produced.
[Image suggestion: CAD drawing → DFM optimization → finished stamped part]
Metal stamping is a high-efficiency manufacturing process, especially for medium- and high-volume production.
However, stamping also depends heavily on tooling and material behavior. A small problem in the original design can lead to die problems, material deformation, cracks, burrs, dimensional issues, or unnecessary production costs.
DFM helps identify these problems before the stamping die is manufactured.
This is important because changing a CAD drawing is usually much easier and less expensive than modifying an existing stamping die.
One of the biggest advantages of DFM is cost control.
A poorly optimized design may require:
More complex tooling
Additional manufacturing steps
More material
Longer cycle times
More secondary operations
Higher scrap rates
A DFM review can identify opportunities to simplify the design and reduce unnecessary manufacturing costs.
For example, changing the geometry of a part may allow it to be produced with a simpler die. Optimizing the layout of multiple parts on a metal sheet can also improve material utilization and reduce scrap.
Even small improvements can make a significant difference when thousands or millions of parts are produced.
[Image suggestion: comparison of material utilization — high scrap vs. optimized nesting]
Time is another important factor in metal stamping.
Before mass production begins, manufacturers usually need to complete several steps:
Design → DFM Review → Tooling → Trial Production → Inspection → Mass Production
If problems are discovered after tooling has already been completed, the die may need to be modified or rebuilt.
This can delay production.
With DFM, potential manufacturing problems can be identified during the design stage. This allows engineers and customers to make changes earlier, helping reduce unnecessary tooling modifications and production delays.
For businesses with strict delivery schedules, this can be especially valuable.
DFM is not only about reducing cost.
It also helps improve the quality and consistency of stamped parts.
Certain design features can create manufacturing problems, including:
Extremely tight tolerances
Sharp internal corners
Small holes
Insufficient material around holes
Excessively deep forming
Unsuitable bend radii
Complicated geometries
When these features are reviewed before production, the design can often be adjusted to make the stamping process more stable.
The result can be more consistent dimensions, fewer defects, and better overall part performance.
[Image suggestion: close-up photos of stamped parts showing dimensional consistency and clean edges]
Stamping dies are a major part of the manufacturing process.
The complexity of the part directly affects the complexity of the tooling.
A complicated design may require:
Multiple forming operations
More complicated die structures
Additional inserts
More maintenance
Longer tooling development time
A DFM-oriented design can simplify these requirements wherever possible.
For example, adjusting a bend radius or changing the position of a feature may make the die easier to manufacture and maintain.
This does not mean every part should be made as simple as possible.
Instead, the goal is to find the right balance between product requirements and manufacturing practicality.
Material selection is another important part of DFM.
Different metals behave differently during stamping.

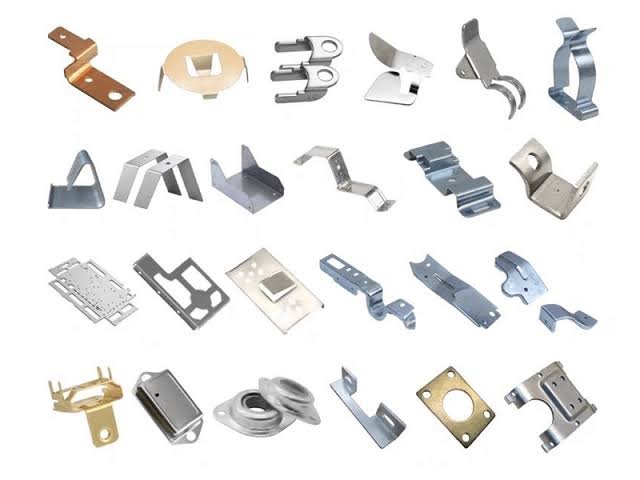

Common materials include:
Carbon steel
Stainless steel
Aluminum
Brass
Copper
Galvanized steel
The material affects factors such as strength, ductility, springback, forming behavior, surface finish, and tool wear.
For example, a design that works well with one material may need adjustments when produced using another material.
A DFM review considers both the part's functional requirements and the manufacturing characteristics of the selected material.
Many stamping problems can be related to the original part design.
Sharp corners or excessive forming can increase the risk of cracking.
Certain hole sizes, clearances, material conditions, and tooling parameters can affect burr formation.
Poorly designed features may cause unwanted deformation during stamping or forming.
Materials may return partially toward their original shape after bending. Proper design and process planning can help compensate for this behavior.
Extremely tight tolerances may make production unnecessarily difficult and expensive.
DFM does not eliminate every manufacturing problem, but it helps reduce avoidable problems before production begins.
A professional DFM review may consider many aspects of the part.
The material thickness needs to be compatible with the stamping operation and the required part strength.
Small holes or holes positioned too close to an edge can create manufacturing challenges.
Appropriate bend radii can help reduce cracking and improve forming stability.
Not every dimension needs an extremely tight tolerance.
Applying unnecessarily tight tolerances can increase tooling and production costs without improving the actual function of the part.
Simple and practical geometries are generally easier to stamp than highly complicated shapes.
Engineers should consider whether the part can be manufactured using progressive dies, compound dies, transfer dies, or other suitable stamping methods.
The arrangement of parts on the raw material can have a significant impact on material waste and production cost.
Consider a small metal bracket.
The original design has:
Sharp internal corners
Very tight tolerances
Deep forming
Small holes close to the edge
The design may look fine on a computer screen, but it could create challenges during stamping.
After a DFM review, the manufacturer may recommend:
Increasing the internal corner radius
Adjusting unnecessary tight tolerances
Changing the forming depth
Moving holes slightly away from the edge
Optimizing the material layout
The final design may look only slightly different.
However, the manufacturing process can become much more stable.
The result may include:
Lower tooling costs + shorter production time + less scrap + more consistent quality
This is one of the main reasons DFM should be considered before tooling begins.
[Image suggestion: “Before DFM / After DFM” comparison of a metal bracket]
The best time to perform a DFM review is before tooling and mass production.
Ideally, the process looks like this:
The customer provides a 2D drawing, 3D CAD file, material specification, quantity, and other requirements.
Engineers review the part geometry, material, thickness, tolerances, holes, bends, and other important features.
If potential manufacturing issues are found, the manufacturer discusses possible design changes with the customer.
The customer and manufacturer agree on the final design.
Only after the design is confirmed should the stamping die be developed.
The manufacturer produces initial samples and checks dimensions and quality.
Once the sample is approved, production can move forward.
This workflow can significantly reduce the risk of expensive changes later.
DFM should not be viewed as simply a manufacturing requirement.
It is a collaboration between the product designer, engineer, purchaser, and stamping manufacturer.
The customer understands what the part needs to do.
The manufacturer understands how the part can be produced efficiently.
When both sides communicate early, they can often find a solution that satisfies both performance requirements and manufacturing requirements.
A good manufacturer should not simply say:
“This drawing cannot be produced.”
Instead, the manufacturer should explain why and suggest practical alternatives.
A common mistake is to focus only on the appearance or function of a part.
A design may look excellent, but manufacturing requirements also need to be considered.
For example, a designer may choose a very sharp corner because it looks cleaner in a CAD model.
However, a stamping manufacturer may recommend a small radius because the material needs to flow during forming.
This does not mean the original design is wrong.
It means the design needs to consider the entire product lifecycle, from CAD design to tooling to mass production.
DFM is an important part of modern metal stamping.
It helps bridge the gap between design and manufacturing.
By considering manufacturability before production begins, companies can potentially:
Reduce production costs
Reduce material waste
Shorten lead times
Simplify tooling
Improve part consistency
Reduce manufacturing problems
Improve overall production efficiency
The most cost-effective time to solve a manufacturing problem is usually before the stamping die is made.
If you are developing a new stamped metal part, sharing your drawing with an experienced stamping manufacturer early in the process can help identify potential problems and opportunities for improvement.
A better design can lead to a better manufacturing process — and ultimately, a better product.
