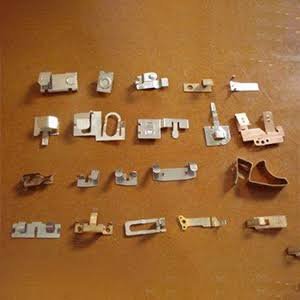

Metal stamping parts are widely used in automotive, electrical, machinery, construction, electronics, and many other industries. However, even precisely stamped metal parts can be affected by corrosion, moisture, friction, and environmental exposure.
This is where plating can make a significant difference.
Plating adds a thin protective layer to the surface of a metal stamping part. Depending on the type of plating used, this surface treatment can improve corrosion resistance, wear resistance, appearance, electrical performance, and service life.
But how exactly does plating protect stamped metal parts? And how do you choose the right plating process for your application?
Let's take a closer look.
Plating is a surface treatment process in which a thin layer of another material is deposited onto the surface of a metal part.
For stamped components, the base material may be carbon steel, stainless steel, copper, brass, or another metal. A plating layer is then applied to improve specific surface properties.
The plating thickness and material can be selected according to the part's application, working environment, performance requirements, and cost target.
In simple terms:
The stamped metal provides the structural strength, while the plating helps protect and improve the surface.
Corrosion is one of the most common problems for metal components.
When steel stamping parts are exposed to moisture, oxygen, salt, chemicals, or other corrosive environments, the surface can gradually oxidize and develop rust.
A suitable plating layer acts as a barrier between the base metal and the surrounding environment.
This can significantly reduce direct contact between the metal surface and moisture or corrosive substances.
For parts used outdoors, in humid environments, or in industrial applications, corrosion protection can be especially important.
A metal stamping part may have excellent mechanical strength, but surface deterioration can still shorten its service life.
Once corrosion or surface wear begins, the performance and appearance of the component may gradually decline.
A suitable plating treatment helps protect the surface and can allow the stamped part to remain functional for a longer period.
This is particularly important when replacing a component is difficult or when maintenance costs need to be controlled.
Some stamped parts are exposed to repeated contact, friction, or movement during operation.
For these applications, ordinary untreated metal may wear over time.
Certain plating finishes can provide improved surface hardness and wear resistance, helping the component withstand repeated use.
This can be useful for:
Mechanical components
Fasteners
Clips and brackets
Moving parts
Electrical components
Automotive stamped parts
The appropriate plating process depends on the required level of wear resistance and the operating conditions of the part.
Not every stamping part is hidden inside a machine.
Some components are visible to the end user, so surface appearance can also be important.
Plating can provide a cleaner, brighter, or more uniform appearance depending on the selected finish.
For example, certain nickel or chrome finishes can provide a smooth and decorative surface, while zinc plating is often selected primarily for corrosion protection.
Therefore, plating can serve both functional and aesthetic purposes.

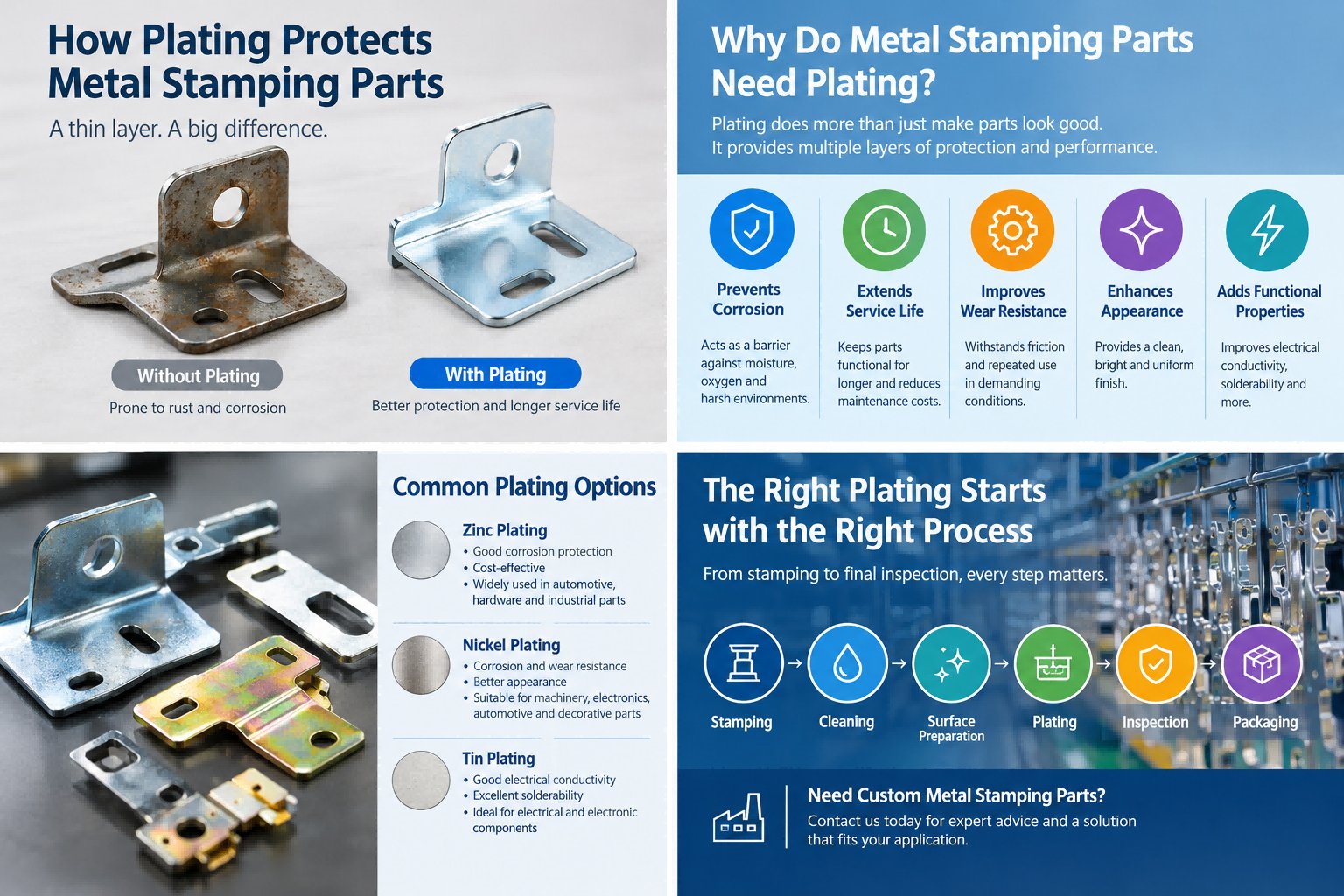

Different applications require different surface treatments. Some commonly used plating options include zinc plating, nickel plating, and tin plating.
Zinc plating is widely used for steel stamping parts because of its good corrosion protection and relatively competitive cost.
It is commonly found on:
Brackets
Fasteners
Clips
Automotive components
Hardware
General industrial parts
Zinc plating can be combined with additional treatments, such as chromate or passivation, depending on the required corrosion resistance and appearance.
Nickel plating can provide good corrosion resistance, wear resistance, and surface appearance.
It is often used when both functional performance and appearance are important.
Nickel plating may be suitable for components used in machinery, electronics, automotive applications, and decorative products.
Tin plating is particularly useful for certain electrical and electronic applications.
One of its advantages is good electrical conductivity and solderability. For stamped electrical terminals and connectors, these properties can be important.
The right plating should therefore be selected based on the actual function of the component rather than appearance alone.
Choosing a plating material is only part of the process.
Plating thickness also matters.
A thicker coating is not automatically better for every application. Excessive plating may increase cost, affect dimensions, or create problems with tight tolerances.
On the other hand, a coating that is too thin may not provide sufficient protection in a demanding environment.
For precision metal stamping parts, the required plating thickness should be determined according to:
Corrosion requirements
Working environment
Wear conditions
Dimensional tolerances
Expected service life
Customer specifications
Cost requirements
This is why plating requirements should ideally be discussed before production begins.
Precision stamping parts can have very tight dimensional requirements.
Adding a surface coating changes the dimensions of the surface, even if only slightly. For some components, this small change can affect assembly or performance.
Therefore, when ordering plated stamping parts, it is important to consider the relationship between:
Stamping → Deburring → Cleaning → Plating → Final Dimensions
For critical components, the manufacturer should evaluate the complete manufacturing process rather than treating plating as a separate step at the end.
It is important to understand that plating is not a substitute for choosing the right base material.
The performance of a stamped component depends on several factors, including:
Base material
Material thickness
Part design
Stamping process
Heat treatment, when required
Surface preparation
Plating type
Plating thickness
Quality control
For example, a part used in a highly corrosive environment may require a different material and surface treatment from a part used indoors in a dry environment.
The best solution is usually a combination of appropriate material + suitable stamping process + proper surface treatment.
Before selecting a plating process, consider the actual working conditions of the part.
Will the component be used indoors or outdoors?
Will it be exposed to water, humidity, salt spray, chemicals, or high temperatures?
The more aggressive the environment, the more attention should be paid to corrosion protection.
Ask what the plating needs to accomplish.
Is the main goal:
Corrosion resistance?
Wear resistance?
Electrical conductivity?
Solderability?
Appearance?
Dimensional stability?
The answer will help narrow down the appropriate plating process.
If the stamped part has tight tolerances, plating thickness needs to be considered during the design and manufacturing process.
This is especially important for components that need to fit precisely with other parts.
For high-volume stamping projects, surface treatment can have a significant impact on the overall production cost.
The most expensive plating process is not necessarily the best choice.
Instead, the goal should be to find a surface treatment that provides the required performance while remaining commercially practical.
Plating quality does not depend only on the plating process itself.
Before plating, the surface usually needs to be properly cleaned and prepared.
Oil, grease, oxides, dirt, and other contaminants can affect coating adhesion and surface quality.
A typical process may include:
Stamping → Cleaning → Surface Preparation → Plating → Inspection → Packaging
Proper preparation helps the plating layer bond effectively to the metal surface.
If you are purchasing custom metal stamping parts, providing clear surface-treatment requirements can help avoid misunderstandings.
You may want to confirm:
Base material
Plating type
Plating thickness
Required corrosion resistance
Surface appearance
Dimensional tolerances
Testing requirements
Packaging requirements
Annual or monthly quantity
If you are not sure which plating process is appropriate, provide your supplier with information about the part's application and working environment.
An experienced manufacturer can then recommend a suitable solution.
Plating is more than just a finishing process for metal stamping parts.
The right plating can help protect the surface from corrosion, improve wear resistance, extend service life, enhance appearance, and provide specific functional properties such as conductivity or solderability.
However, the best result does not come from choosing the thickest or most expensive coating.
It comes from matching the base material, plating type, coating thickness, part design, working environment, and performance requirements.
If you are developing custom metal stamping parts, discussing surface treatment early in the design and quotation stage can help you achieve the right balance between performance, quality, and cost.
